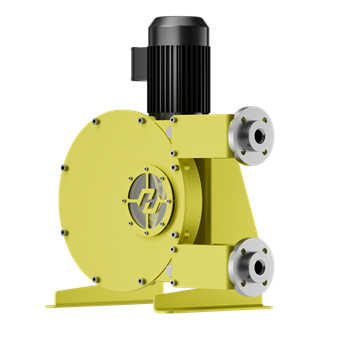

ABP series
The ABP series uses Tygoprene hoses for high corrosion resistance. It employs a roller compression structure, resulting in lower friction, less heat generation, and extended hose life.
> Integrally cast, fully sealed head, ductile iron material.
> Circular cover and sight glass.
> Gland packing seals at inlet/outlet ports.
> Rolling compression, with specialized lubricant.
> Expansion bushing connection.
> Leakage alarm.
> Rolling compression, oil bath lubrication, longer hose life
> Domestic hoses, offering a cost advantage.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
| ABP09 | 1.3 | 13 | 26 | 39 | 52 | 65 | 78 | 91 | 104 | 117 | 130 |
| ABP13 | 2.5 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 |
| ABP17 | 7.2 | 72 | 144 | 216 | 288 | 360 | 432 | 504 | 576 | 648 | 720 |
| ABP25 | 18.5 | 185 | 370 | 555 | 740 | 925 | 1110 | 1295 | 1480 | 1665 | 1850 |
| ABP30 | 37 | 370 | 740 | 1110 | 1480 | 1850 | 2220 | 2590 | 2960 | 3330 | 3700 |
| ABP45 | 132 | 1320 | 2640 | 3960 | 5280 | 6600 | 7920 | 9240 | 10560 | 11880 | 13200 |
