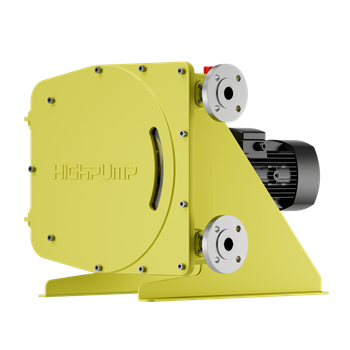

The GTH series uses high-quality imported high-pressure composite rubber for higher output pressure. It employs a roller compression structure, resulting in less stress, lower heat generation, lower speeds for equivalent flow rates, and extended service life.
> Integrally cast, fully sealed head, ductile iron/Stainless Steel optional.
> Hinge-connected,removal-free cover , crescent-shaped sight glass.
> Hose installed internally for easy maintenance, hose replacement no need piping-removal.
> Sliding or rolling compression optional,with specialized lubricant for lubrication and cooling.
> Modular design, separate pump head and gear motor.
> Spline connection.
> Heavy-duty double bearing support.
> Cooling ribs for heat dissipation.
> Smart IoT intergration, PLC touch screen, real-time online monitoring, leakage and overpressure alarms, shutdown protection, and hose change reminders.
> Lower pump temperature rise.
> Longer hose life.
> Stainless steel pump available upon request.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
| GTH10 | 1.9 | 19 | 38 | 57 | 76 | 95 | 114 | 133 | 152 | 171 | 190 |
| GTH15 | 6.8 | 68 | 136 | 204 | 272 | 340 | 408 | 476 | 544 | 612 | 680 |
| GTH20 | 11.6 | 116 | 232 | 348 | 464 | 580 | 696 | 812 | 928 | 1044 | 1160 |
| GTH25 | 23 | 230 | 460 | 690 | 920 | 1150 | 1380 | 1610 | 1840 | 2070 | 2300 |
| GTH32 | 50 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| GTH40 | 77 | 770 | 1540 | 2310 | 3080 | 3850 | 4620 | 5390 | 6160 | 6930 | 7700 |
| GTH50 | 218 | 2180 | 4360 | 6540 | 8720 | 10900 | 13080 | 15260 | 17440 | 19620 | |
| GTH60 | 310 | 3100 | 6200 | 9300 | 12400 | 15500 | 18600 | 21700 | 24800 | 27900 | |
| GTH65 | 390 | 3900 | 7800 | 11700 | 15600 | 19500 | 23400 | ||||
| GTH80 | 850 | 8500 | 17000 | 25500 | 34000 | 42500 | |||||
| GTH100 | 1300 | 13000 | 26000 | 39000 | 52000 | 65000 |
