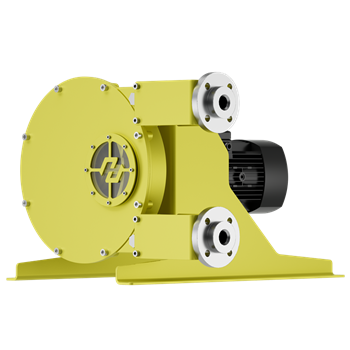

ABH series
The ABH series uses domestically produced hoses, delivering higher outlet pressure.It employs a shoe
compression structure, resulting in stable outlet pressure and low pulsation.
> Integrally cast, fully sealed head, ductile iron material.
> Circular cover and sight glass.
> Gland packing seals at inlet/outlet ports.
> Sliding compression, with specialized lubricant.
> Expansion bushing connection.
> Leakage alarm.
> Sliding compression, oil bath lubrication, stable outlet pressure with low pulsation.
> Domestic hoses, offering a cost advantage.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
ABH05 (3lobes) | 0.37 | 3.7 | 7.4 | 11.1 | 14.8 | 18.5 | 22.2 | ||||
| ABH05 | 0.4 | 4 | 8 | 12 | 16 | 20 | 24 | ||||
ABH10 (3lobes) | 1.1 | 11 | 22 | 33 | 44 | 55 | 66 | 77 | |||
| ABH10 | 1.25 | 12.5 | 25 | 37.5 | 50 | 62.5 | 75 | 87.5 | 100 | 112.5 | 125 |
ABH15 (3lobes) | 4.5 | 45 | 90 | 135 | 180 | 225 | 270 | 315 | 360 | 405 | 450 |
| ABH15 | 5 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
ABH20 (3lobes) | 7.65 | 76.5 | 153 | 229.5 | 306 | 382.5 | 459 | 535.5 | 612 | 688.5 | 765 |
| ABH20 | 8.5 | 85 | 170 | 255 | 340 | 425 | 510 | 595 | 680 | 765 | 850 |
| ABH25 | 16 | 160 | 320 | 480 | 640 | 800 | 960 | 1120 | 1280 | 1440 | 1600 |
| ABH32 | 40 | 400 | 800 | 1200 | 1600 | 2000 | 2400 | 2800 | 3200 | 3600 | 4000 |
| ABH40 | 56 | 560 | 1120 | 1680 | 2240 | 2800 | 3360 | 3920 | 4480 | 5040 | 5600 |
| ABH50 | 158 | 1580 | 3160 | 4740 | 6320 | 7900 | 9480 | 11060 | 12640 | 14220 | |
| ABH60 | 230 | 2300 | 4600 | 6900 | 9200 | 11500 | 13800 | 16100 | 18400 | 20700 | |
| ABH65 | 328 | 3280 | 6560 | 9840 | 13120 | 16400 | 19680 | 22960 | 26240 | 29520 | |
| ABH80 | 780 | 7800 | 15600 | 23400 | 31200 | 39000 | |||||
| ABH100 | 1300 | 13000 | 26000 | 39000 | 52000 | 65000 | |||||
| ABH280 | 1560 | 15600 | 31200 | 46800 | 62400 | 78000 | |||||
| ABH2100 | 2600 | 26000 | 52000 | 78000 | 104000 | 130000 |
