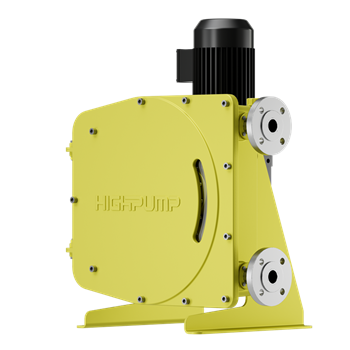

The GTP series uses Tygoprene hoses for high corrosion resistance. It employs a roller compression structure, resulting in lower friction, less heat generation, and extended hose life.
> Integrally cast, fully sealed head, ductile iron/Stainless Steel optional.
> Hinge-connected,removal-free cover, crescent-shaped sight glass.
> Hose installed internally for easy maintenance, hose replacement no need piping-removal.
> Rolling compression, with specialized lubricant for lubrication and cooling.
> Modular design, separate pump head and gear motor.
> Spline connection.
> Heavy-duty double bearing support.
> Cooling ribs for heat dissipation.
> Smart IoT intergration, PLC touch screen, real-time online monitoring, leakage and over-pressure alarms, shutdown protection, and hose change reminders.
> Lower pump temperature rise.
> Longer hose life.
> Stainless steel pump available upon request.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
| GTP09 | 1.96 | 19.6 | 39.2 | 58.8 | 78.4 | 98 | 117.6 | 137.2 | 156.8 | 176.4 | 196 |
| GTP13 | 3.8 | 38 | 76 | 114 | 152 | 190 | 228 | 266 | 304 | 342 | 380 |
| GTP17 | 9.8 | 98 | 196 | 294 | 392 | 490 | 588 | 686 | 784 | 882 | 980 |
| GTP25 | 24.9 | 249 | 498 | 747 | 996 | 1245 | 1494 | 1743 | 1992 | 2241 | 2490 |
| GTP30 | 50 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | |
| GTP45 | 170 | 1700 | 3400 | 5100 | 6800 | 8500 | 10200 | 11900 | 13600 | 15300 |
