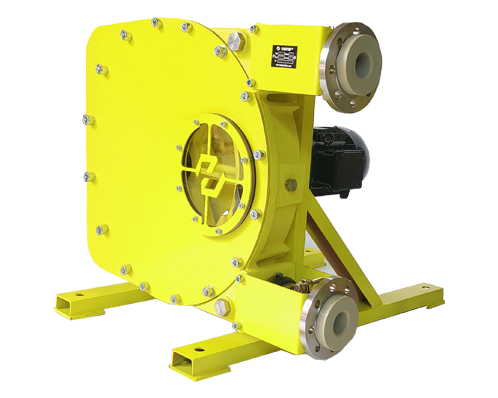

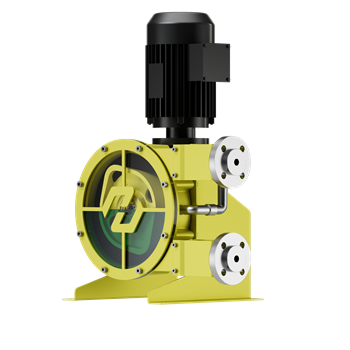

The HH series uses high-quality imported high-pressure composite rubber for higher output pressure. It employs a shoe sliding compression structure.
> Integrally cast, fully sealed head, ductile iron material.
> Pear-shaped pump cover and sight glass.
> O-ring seals at inlet/outlet ports.
> Sliding compression, with specialized lubricant.
> Modular design, separate pump head and gear motor.
> Spline connection.
> Heavy-duty double bearing support.
> Cooling ribs for heat dissipation.
> Smart IoT intergration. Integrated control box, auto-matic alarm and shutdow protection for leakage and overpressure
> Sliding compression, oil bath lubrication, stable outlet pressure with low pulsation.
> Compact structure, small installationspace, lightweight.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
HH05 (3lobes) | 0.4 | 4 | 8 | 12 | 16 | 20 | 24 | ||||
| HH05 | 0.43 | 4.3 | 8.6 | 12.9 | 17.2 | 21.5 | 25.8 | ||||
HH10 (3lobes) | 1.25 | 12.5 | 25 | 37.5 | 50 | 62.5 | 75 | 87.5 | |||
| HH10 | 1.45 | 14.5 | 29 | 43.5 | 58 | 72.5 | 87 | 101.5 | 116 | 130.5 | 145 |
HH15 (3lobes) | 4.9 | 49 | 98 | 147 | 196 | 245 | 294 | 343 | 392 | 441 | 490 |
| HH15 | 5.5 | 55 | 110 | 165 | 220 | 275 | 330 | 385 | 440 | 495 | 550 |
HH20 (3lobes) | 8.37 | 83.7 | 167.4 | 251.1 | 334.8 | 418.5 | 502.2 | 585.9 | 669.6 | 753.3 | 837 |
| HH20 | 9.3 | 93 | 186 | 279 | 372 | 465 | 558 | 651 | 744 | 837 | 930 |
| HH25 | 19.5 | 195 | 390 | 585 | 780 | 975 | 1170 | 1365 | 1560 | 1755 | 1950 |
| HH32 | 45 | 450 | 900 | 1350 | 1800 | 2250 | 2700 | 3150 | 3600 | 4050 | 4500 |
| HH40 | 63 | 630 | 1260 | 1890 | 2520 | 3150 | 3780 | 4410 | 5040 | 5670 | 6300 |
| HH50 | 176.5 | 1765 | 3530 | 5295 | 7060 | 8825 | 10590 | 12355 | 14120 | 15885 | |
| HH60 | 257 | 2570 | 5140 | 7710 | 10280 | 12850 | 15420 | 17990 | 20560 | 23130 | |
| HH65 | 328 | 3280 | 6560 | 9840 | 13120 | 16400 | 19680 | 22960 | 26240 | 29520 | |
| HH80 | 780 | 7800 | 15600 | 23400 | 31200 | 39000 | 46800 |
