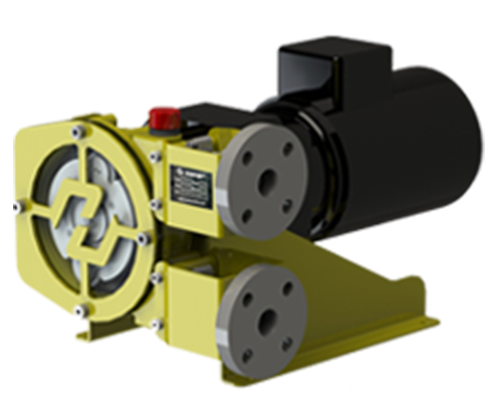

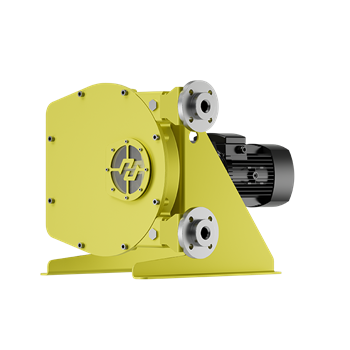

The HP series uses Tygoprene hoses for high corrosion resistance. It employs a roller compression structure, resulting in lower friction, less heat generation, and extended hose life.
> Integrally cast, fully sealed head, ductile iron material.
> Pear-shaped pump cover and sight glass.
> O-ring seals at inlet/outlet ports.
> Rolling compression, with specialized lubricant.
> Modular design, separate pump head and gear motor.
> Spline connection.
> Heavy-duty double bearing support.
> Cooling ribs for heat dissipation.
> Smart IoT intergration. Integrated control box, automatic alarm and shutdow protection for leakage and overpressure.
> Rolling compression, oil bath lubrication, longer hose life.
> Compact structure, small installation space, lightweight.
Flow Curve Table (L/h)
| Model | 1rpm | 10rpm | 20rpm | 30rpm | 40rpm | 50rpm | 60rpm | 70rpm | 80rpm | 90rpm | 100rpm |
| HP09 | 1.5 | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | 135 | 150 |
| HP13 | 2.9 | 29 | 58 | 87 | 116 | 145 | 174 | 203 | 232 | 261 | 290 |
| HP17 | 7.9 | 79 | 158 | 237 | 316 | 395 | 474 | 553 | 632 | 711 | 790 |
| HP25 | 22 | 220 | 440 | 660 | 880 | 1100 | 1320 | 1540 | 1760 | 1980 | 2200 |
| HP30 | 41.5 | 415 | 830 | 1245 | 1660 | 2075 | 2490 | 2905 | 3320 | 3735 | 4150 |
| HP45 | 147.5 | 1475 | 2950 | 4425 | 5900 | 7375 | 8850 | 10325 | 11800 | 13275 | 14750 |
