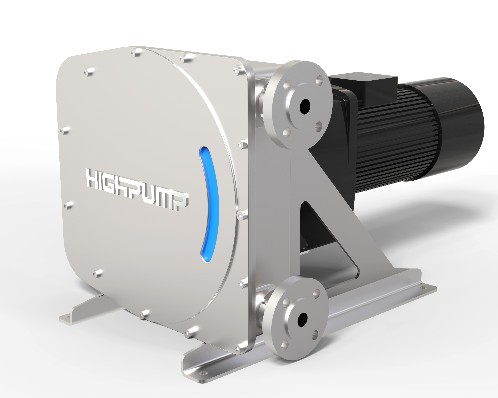

The stainless steel hose pump, pump body and brackets are all made of stainless steel, which can better deal with strong corrosive environments than conventional hose pumps; at the same time, the pump body does not need to be painted, and can also be used for nuclear power and other higher requirements field.
Ø Rolling extrusion, Soak in lubricating oil or grease, Extending hose life
Ø IOT intelligence, real-time online condition monitoring, preventive hose replacement
Ø Compact structure, small installation space, light weight, far better than the construction hose pump
Ø All made of stainless steel, which can better deal with strong corrosive environments
Ø Suitable for continuous heavy duty service
Ø Excellent dosing of corrosive chemicals
Ø Self-priming up to 9.8 m,no differential level required
Ø Reversible, free choice of inlet and outlet ports,easy to clean
Ø No mechanical seal or stuffing box
Ø Dry running,without any damage to mechanical parts
Ø Minimum time for maintenance and easy hose replacement
Ø Low sound level : ≤ 70 dB
Unit(L/H)
| Model | 20RPM | 40RPM | 60RPM | 80RPM | 100RPM |
| HH10.2 | 36.7 | 73.4 | 110.1 | 146.8 | 183.5 |
| HH20.2 | 206.7 | 413.4 | 620.1 | 826.8 | 1033.5 |
| HH25.2 | 386.7 | 773.4 | 1160.1 | 1546.8 | 1933.5 |
| HH40.2 | 1400 | 2800 | 4200 | 5600 | 7000 |
| HH50.2 | 4200 | 8400 | 12600 | 16800 | 21000 |
| HH65.2 | 8000 | 16000 | 24000 | 32000 | 40000 |
| HH80.2 | 17000 | 34000 | / | / | / |
